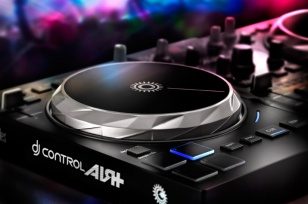

Thrustmaster Hercules DJControl AIR+ 2 Deck

> 2-deck DJ controller with audio

> Great jog wheels for scratching

• Pressure detection: as intuitive for scratching as turntables
• Large diameter: 5.9"/15 cm
• > 750 steps per rotation

Built-in audio
• Master output
• Headphones output
• Microphone input

AIR sensor
• Long range sensor > 11.8"/30 cm
• View meter for AIR sensor

Mechanical specifications

Enclosure:  17.9 x 10.2" 45.5 x 26 cm
Jog wheels ø : 5.9"/15 cm
Weight : 4.4 lbs./2 kg

Audio specifications

Outputs:

Master 2 x RCA (line)

(ch. 1-2) 1 stereo ?" jack
Monitor 1 stereo ¼" jack
(ch. 3-4) (headphones)
1 stereo ?" jack

Input:

Mic In 1 x ¼" (balanced)



+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++



AIR control
Why is the controller called DJ CONTROL AIR+?
"AIR" stands for Adjustment by InfraRed: it is a contactless control.

• The DJ places his or her hand flat over the infrared beam.
• The controller calculates the distance between the sensor and the hand, and converts it into a gradual MIDI command.
• This MIDI command modulates a setting in the DJ software.



Does the AIR control require specific lighting conditions?
No: the AIR control functions under any lighting conditions.

• The infrared light beam projected toward the hand is invisible.
• The sensor captures the infrared reflection on the hand, and uses the reflection to calculate the hand’s distance.
• The reflection is the same in both daylight and low-light conditions, allowing the AIR control to be used during the day, at night or in places with weak lighting.
• The AIR control functions with all flesh tones. The only incompatibility is the use of black gloves (as the infrared sensor would not be able to detect the reflection).

8 pads
2 sets of 4 pads control hot cues and samples.

• The DJ taps on the pads with his or her fingertips to send commands such as cue points or samples.
• The pads light up when touched.
• In addition to a binary On/Off command, each pad can transfer velocity information to modulate the command.
• For example: in sampler mode, the velocity can control the volume of a sample’s playback. The playback volume depends on how soft or how hard the DJ taps on the pad.



Pressure-detecting jog wheels
The jog wheels detect the pressure from the user’s hand.

• With scratch mode enabled ("Vinyl" button to switch on/off), the jog wheels scratch when the hand’s weight is detected, and stop scratching when the hand’s weight is no longer detected. This allows the DJ to:
  • stop playback by pressing on the jog wheel.
  • restart playback by lifting up his or her hand.
  • scratch by turning the jog wheel while pressing down, and stop scratching by lifting up his or her hand.
  • bend the pitch (if playback is on) / browse within tracks (if playback is off) by turning the jog wheels using their outer ring, to avoid applying downward pressure.
• With scratch mode disabled, the jog wheels bend the pitch or browse within tracks when turned, regardless of the pressure applied.

• Hercules DJ CONTROL AIR+
• USB cable
• CD with DJUCED 40°(PC/Mac)
• Printed + PDF installation guide



• Computer CPU: 1.6 GHz or faster Intel CoreTM 2 Duo or AMD 64-bit
• 2 GB of RAM or more
• High-speed USB port (USB 2 or 3)
• 100 MB available disk space
• CD/DVD-ROM drive
• Internet access
• Headphones + active speakers

Operating system (32/64-bit)

• MS Windows® XP/Vista/7/8 or
• Mac OS® 10.6/10.7/10.8
