Draytek Vigor130 DV130

Support IPv6 & IPv4 network
Built-in VDSL2 modem for easy Internet access
Multi-PVC or Multi-VLAN for triple-play application
1 x 10/100/1000 Base-Tx Gigabit Ethernet LAN port
Firewall with URL filtering
1 year warranty

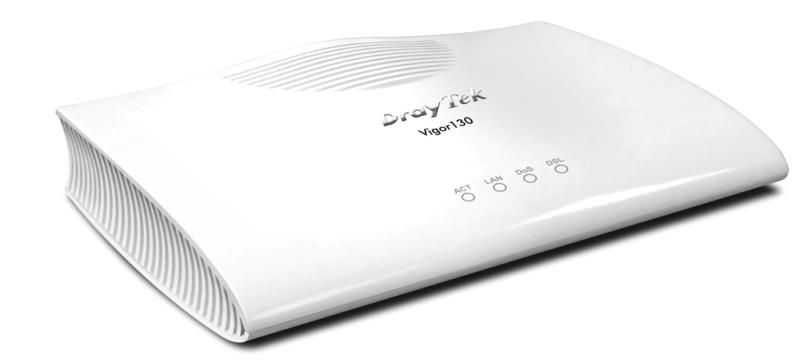

The Vigor130 is an IPv6 ready compact VDSL2 router with ADSL2/2+ fallback for SOHO and residential broadband access requirement. This compact router is capable to manage the latest VDSL2 feed and backward compatible with the existed ADSL line if the infrastructure is not ready yet.

Multi-PVC and Multi-VLAN functions make the triple-play deployment with ease. The Vigor130 can satisfy the different services such as Data/Video/VoIP/Management provided by ISPs by the single VDSL2/ADSL WAN port. And its Gigabit Ethernet LAN port allows devices in the LAN network to get faster data transmission for essential applications.

Besides powerful firewall protection against malicious Denial of Service (DoS) attacks, the Vigor130 is designed with more advanced security feature such as Stateful Packet Inspection (SPI) to offer network reliability by detecting attacks and prohibits malicious penetrating packets from entering internal network. For preventing access to inappropriate websites, the Vigor130 offers URL filtering to set the customized rules.

ADSL2/2+ & VDSL2
Compliant with ITU-T VDSL2 G.993.2
Compliant with ITU-T G.997.1
Capability Fall back to ADSL2/2+ Standards
ANSI T1.413 Issue2
ITU-T G.992.1 G.dmt
ITU-T G.992.3 ADSL2 G.dmt.bis
ITU-T G.992.5 ADSL2+
VDSL Band Plan: 997, 998
VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
Annex A, Annex B, Annex M, Annex J
Loop diagnostic Mode
Compatible with POTS/PSTN
Multi-PVC
WAN Protocol
DHCP Client
Static IP
PPPoE
PPPoA (ADSL2/2+ only)
MPoA (RFC1483/2684)
PPTP/L2TP (VDSL2 only)
802.1q VLAN Tagging
IP Version
IPv4
IPv6
Tunnel Mode: TSPC, AICCU, 6in4, 6rd
Dual Stack: PPP, DHCPv6 Client, Static IPv6
Firewall
Multi-NAT, DMZ Host, Port-redirection and Open Port
MAC Address Filter
SPI (Stateful Packet Inspection)
DoS/DDoS Prevention
E-mail Alert and Logging via Syslog
Time Schedule Control
VPN Pass-through (IPsec, PPTP, L2TP)
Content Security Management
URL Content Filter:
URL Keyword Filter (White List and Black List)
Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
Network Feature
Router/Bridge Configurable
IGMP Proxy V2/V3
DHCP Client/Relay/Server
UPnP 100 Sessions
DNS Cache/Proxy
Dynamic DNS
NTP Client
Static Route
RIP v1/v2
Network Management
Web-based User Interface (HTTP/HTTPs)
Quick Start Wizard
CLI (Command Line Interface, Telnet/SSH)
Administration Access Control
Configuration Backup/Restore
Built-in Diagnostic Function
Firmware Upgrade via TFTP/FTP/WUI/TR-069
Logging via Syslog
TR-069 Compliance with VigorACS SI
SNMP v1/v2c

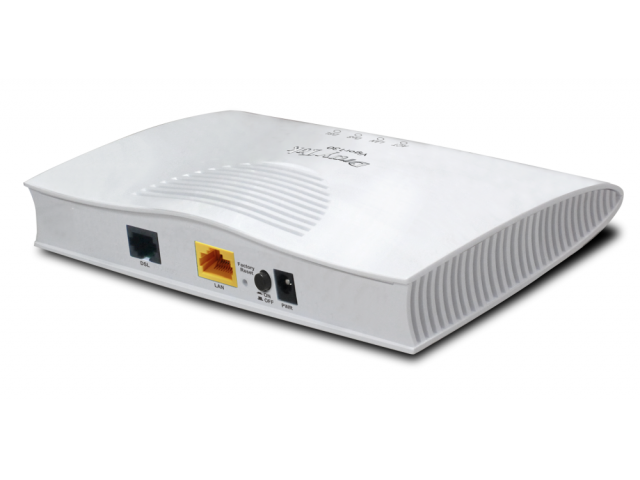

Hardware Interface
1 x VDSL2/ADSL2/2+ port, RJ-11 (Annex A)
1 x 10/100/1000 Base-Tx LAN port, RJ-45
1 x Factory Reset Button
* Firmware Upgradeable
