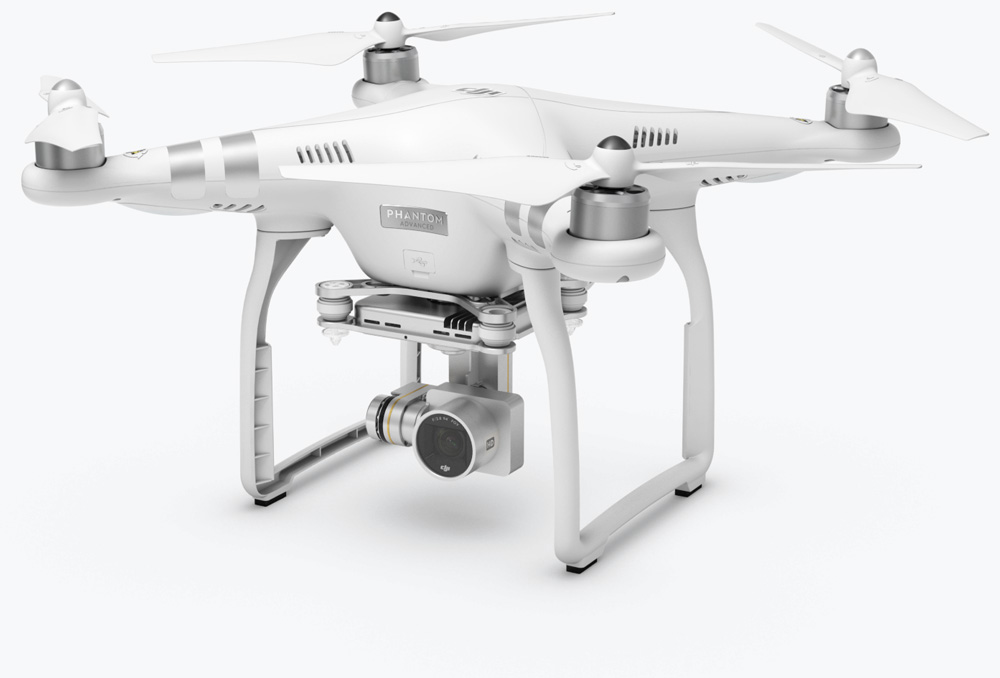

DJI Phantom 3 Advanced Drone with Integrated FHD-1080p Stabilised Camera

DJI Phantom 3 Advanced Drone with Integrated FHD-1080p Stabilised Camera

Code: DROPH3A Out of Stock

$1316.00

or 4 interest-free payments of $ 329.00 Info

DJI Phantom 3 Advanced Drone with Integrated FHD-1080p Stabilised Camera - CP.PT.000161

description

Aircraft

Weight (including battery and propellers)	1280 g
Diagonal Size (Excluding Propellers)	350 mm
Max Ascent Speed	5 m/s
Max Descent Speed	3 m/s
Hover Accuracy	Vertical: +/- 0.1 m (when Vision Positioning is active) or +/- 0.5 m Horizontal: +/- 1.5 m
Max Speed	16 m/s (ATTI mode, no wind)
Max Service Ceiling Above Sea Level	6000 m (Default altitude limit: 120 m above takeoff point)
Operating Temperature	0°C to 40°C
GPS Mode	GPS/GLONASS
Max Flight Time	Approx. 23 minutes

Gimbal

Controllable Range	Pitch -90° to +30°
Stabilization	3-axis (pitch, roll, yaw)

Remote Controller

Operating Frequency	2.400 GHz-2.483 GHz
Max Transmission Distance	Up to 5 km or 3.1 miles (unobstructed, free of interference) when FCC compliant Up to 3.5 km or 2.1 miles (unobstructed, free of interference) when CE compliant
Operating Temperature	32° to 104° F ( 0° to 40° C )
Battery	6000 mAh LiPo 2S
Transmitter Power (EIRP)	FCC: 20 dBm CE: 16 dBm
Operating Voltage	1.2 A @7.4 V

Intelligent Flight Battery

Capacity	4480 mAh
Voltage	15.2 V
Battery Type	LiPo 4S
Energy	68 Wh
Net Weight	365 g
Operating Temperature	14° to 104° F ( -10° to 40° C )
Max Charging Power	100 W

Camera

Sensor	Sony EXMOR 1/2.3” Effective pixels: 12.4 M (total pixels: 12.76 M)
Lens	FOV 94° 20 mm (35 mm format equivalent) f/2.8, focus at 8
ISO Range	100-3200 (video) 100-1600 (photo)
Shutter Speed	8s -1/8000s
Image Max Size	4000 x 3000
Still Photography Modes	Single Shot Burst Shooting: 3/5/7 shots Auto Exposure Bracketing (AEB): 3/5 Bracketed Frames at 0.7EV Bias Time-lapse
Video Recording Modes	2.7K: 2704 x1520p 24/25/30 (29.97) FHD: 1920x1080p 24/25/30/48/50/60 HD: 1280x720p 24/25/30/48/50/60
Supported SD Card Types	Micro SD Max capacity: 64 GB. Class 10 or UHS-1 rating required
Max Video Bitrate	40 Mbps
Supported File Formats	FAT32 ( = 32 GB ); exFAT ( > 32 GB )
Operating Temperature	32° to 104° F ( 0° to 40° C )
Photo	JPEG, DNG
Video	MP4, MOV (MPEG-4 AVC/H.264)

Vision Positioning

Velocity Range	Less than 8 m/s (when 2 m above ground)
Altitude Range	30 cm-300 cm
Operating Range	50 cm-300 cm
Operating Environment	Surface with clear pattern and adequate lighting (Lux > 15)

Charger

Voltage	17.4 V
Rated Power	57 W

App / Live View

Mobile App	DJI GO
EIRP	100mW
Power Spectral Density	6.9mW/MHz
Live View Working Frequency	2.4GHz ISM
Live View Quality	720P @ 30fps (depending on conditions and mobile device)
Latency	220ms (depending on conditions and mobile device)
Required Operating Systems	iOS 8.0 or later Android 4.1.2 or later
Recommended Devices	ios: iPhone 5s, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPod touch 6, iPad Pro, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4, and iPad mini 4 Wi-Fi + Cellular. This app is optimized for iPhone 5s, iPhone 6, iPhone 6 Plus, iPhone 6s and iPhone 6s Plus. Android: Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei Mate 8, Nubia Z7 mini, SONY Xperia Z3, MI 3, MI PAD *Support for additional Android devices available as testing and development continues.

Voltage 17.4 V Rated Power 57 W

App / Live View

Mobile App	DJI GO
EIRP	100mW
Live View Working Frequency	2.4GHz ISM
Live View Quality	720P @ 30fps (depending on conditions and mobile device)
Latency	Low Latency Video (depending on conditions and mobile device)
Required Operating Systems	iOS 8.0 or later Android 4.1.2 or later
Recommended Devices	ios: iPhone 5s, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPod touch 6, iPad Pro, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4, and iPad mini 4 Wi-Fi + Cellular. This app is optimized for iPhone 5s, iPhone 6, iPhone 6 Plus, iPhone 6s and iPhone 6s Plus. Android: Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei Mate 8, Nubia Z7 mini, SONY Xperia Z3, MI 3, MI PAD *Support for additional Android devices available as testing and development continues.
Power Spectral Density	6.9mW/MHz

Gimbal

Controllable Range	Pitch -90° to +30°
Stabilization	3-axis (pitch, roll, yaw)

Remote Controller

Operating Frequency	5.725 GHz – 5.825 GHz, 922.7 MHz – 927.7 MHz (Japan)
Max Transmission Distance	FCC: 1000 m; CE: 500 m (outdoors and unobstructed, aircraft's altitude at 400 feet (120 m))
Operating Temperature	32° to 104° F ( 0° to 40° C )
Battery	2600 mAh LiPo 18650
Transmitter Power (EIRP)	FCC: 20 dBm CE: 16 dBm
Operating Voltage	600 mA @ 3.7V
Charging Port	Micro USB

Intelligent Flight Battery

Capacity	4480 mAh
Voltage	15.2 V
Battery Type	LiPo 4S
Energy	68 Wh
Net Weight	365 g
Operating Temperature	14° to 104° F ( -10° to 40° C )
Max Charging Power	100 W
