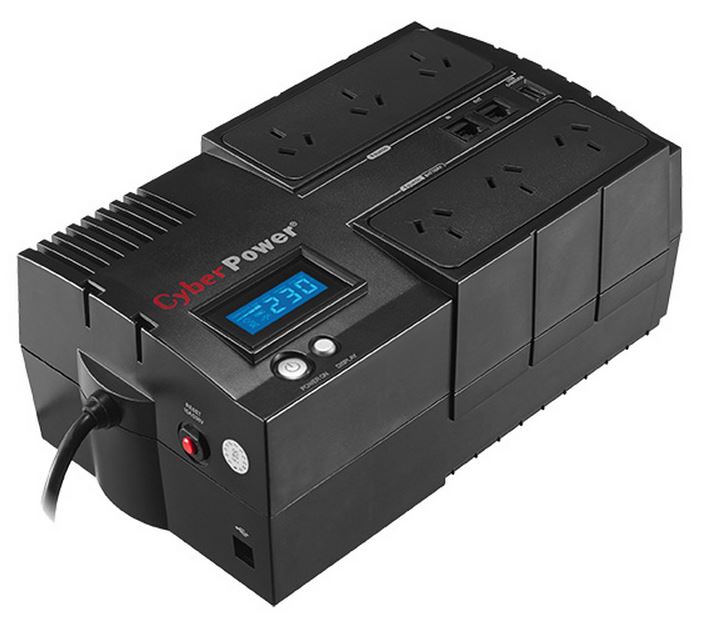

CyberPower BRIC-LCD 1000VA/600W - BR1000ELC

The BRICs LCD BR1000ELCD UPS for home and small office computer systems and electronic devices features line conditioning and protection against surges/spikes, provides reliable battery backup and clean power supplies during brownouts or power failures. This UPS system is designed with patented GreenPower UPS™ bypass circuitry that improves the operating efficiency so that users can enjoy significant cost savings by reducing energy consumption and waste heat generated.

The BR1000ELCD comes with a capacity of 1000VA/600Watts and six (6) AU type receptacles, including three (3) for battery and surge protection. The multifunction LCD readout showcases real-time power/battery status at a single push-of-a-button.

RJ11/RJ45 (One-in/One-out) port is included for the protection of phone and network line. The EMI/RFI filters increase the tolerance of noises and load interferences so that improve the picture and sound quality in audio/video systems. Featuring Automatic Voltage Regulation (AVR) technology that helps to stabilize AC voltage and to provide protection to connected equipment. The unit offers one (1) HID USB connectivity port with PC as well as one (1) 5VDC USB 2.0 charging port for portable devices such as mobile phones, MP3 players, and cameras. A cable collector apparatus is provided for an easy and tidy cord management.

PowerPanel® Personal Edition UPS Management software automatically saves computer files and gracefully shuts down the connected devices in the event of power loss or failures. For as long as you own this product, CyberPower will cover up to $75,000 of properly connected equipment if it’s ever damaged by a surge, including surges due to lightning strikes.

General

UPS Topology Line-interactive
Energy Saving Yes
Input

Voltage 230Vac
Input Voltage Range 170Vac - 290Vac
Input Frequency Range 50/60Hz ± 3Hz (Auto-sensing)
Plug Type AU
Input Current (Amp) 10A
Cord Length (m) 1.8
Output

VA 1000
Watts 600
On Battery Waveform Simulated Sine Wave
On Battery Voltage 230Vac ± 10%
Automatic Voltage Regulation (AVR) Single Boost
Automatic Voltage Regulation (Line Mode) Single Boost: 18%Single Buck: 15%
On Battery Frequency 50/60Hz ± 1%
Overload Protection On Utility: Circuit Breaker & Internal circuitry limiting / On Battery: Internal Current Limiting
Outlets - Total 6
Outlet Type AU
Outlets - Battery & Surge Protected 3
Outlets - Surge-Only Protected 3
USB Charging Ports Yes
Transfer Time 4ms
Battery

Runtime at Half Load (min) 7
Runtime at Full Load (min) 0.5
Battery Type Sealed Lead Acid
Battery Quantity 1
User Replaceable Yes
Typical Recharge Time 8 Hours
Replacement Battery Pack RBP0006
Replacement Battery Pack Quantity 1
Surge Protection & Filtering

Surge Suppression 125 Joules (L-N)
Phone / Network Protection RJ11/RJ45 1-In, 1-Out (Combo)
Management & Communications

LCD Control Panel Yes
Multifunction LCD Diagnostic Display Battery Capacity, Load Capacity, Estimated run time, Input voltage, Output voltage, Line mode Icon, Battery mode Icon, Overloaded Icon, Silent mode Icon, Fault Icon
HID Compliant USB Port Yes
Management Cable USB Cable
Audible Alarms On Battery, Low Battery, Overload, Fault
Software PowerPanel® Personal Edition
Physical

Form Factor Brick
Physical - UPS Module

Dimensions (WxHxD) (mm.) 160 x 114 x 271
Weight (kg.) 6.8
Environmental

Operating Temperature + 32°F to 104° F / 0° C to 40° C
Operating Humidity 0% - 90% non-condensing
Operating Elevation 0-1000 meters
Storage Temperature - 4°F to 122° F / -20° C to 50° C
Storage Relative Humidity 0% - 90%
Online Thermal Dissipation 102 BTU/hr
Certifications

Certifications CE, C-Tick
RoHS RoHS Compliant
Warranty

Product Warranty 2 Years Limited
Connected Equipment Guarantee Lifetime
CEG Amount 75000 AUD
