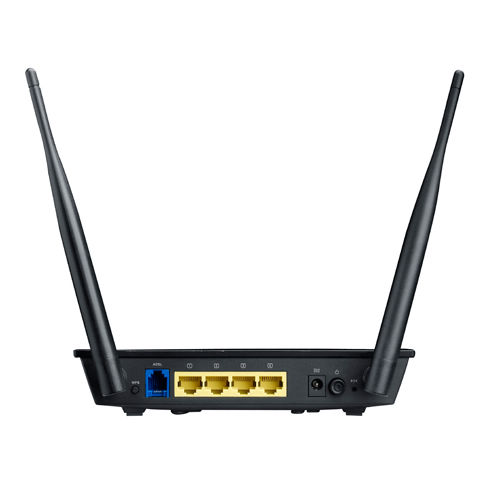

ASUS DSL-N12E Wireless N300 ADSL2+ Modem Router

Product Segment
N300 complete networking 300Mbps
Wi-Fi Data Rate
802.11b : 1 2 5.5 11Mbps
802.11g : 69121824364854Mbps
802.11n : up to 300Mbps
xDSL Data Rate
G.992.1 (T1.413)
G.992.2 (G.dmt) G.lite
G.992.3 (G.bis/ADS L2)
G.992.5 (ADSL2+)
Annex L (reach extended ADSL2)
Antenna
Fixed 2 or 5 dBi antenna x 2
*Antenna signal power may vary by region due local regulations and requirements
LED Indicator
Power ADSL Internet WLAN LAN x 4
Button
WPS Button Reset Button Power Button
Ports
1 x RJ11 for ADSL
4 x RJ45 for 10/100 BaseT for LAN
Operating Frequency
2.4GHz
Operation Channel
11 for N. America
13 Europe (ETSI)
Security
64-bit WEP 128-bit WEP WPA2-PSK WPA-PSK Radius with 802.1x WPS support
Management
Web-based GUI configuration
Firmware upgraded configuration data uploaded and downloaded via Web-based GUI
Configuration backup and restore
Diagnostics
Log & Trace function
Power Adapter
AC Input : 100 ~240 V(50~60HZ)
DC Output : 12 V/0.8 A
Certificates
CE
Dimensions
168 x 124 x 30 mm (WxDxH)
Weight
300 g (Device Only)
Environmental
Operating Temperature: -10 °C to 50 °C (14 °F to 122 ºF)
Storage Temperature: -40 ° to 60 ° C (-40 °F to 140 °F)
Operating Humidity: 5 % to 95 % (Non-condensing)
Storage Humidity: 5 % to 95 % (Non-condensing)
OS Support
Windows® 8 32bit/64bit
Windows® 7 32bit/64bit
Windows® Vista 32bit/64bit
Windows® XP 32bit/64bit
Mac OS X
Linux
Package Content
DSL-N12E Wireless ADSL modem Router
Power adapter
Support CD (user manual QSG)
RJ45 cable
RJ11 cable
Quick Start Guide
Warranty card
