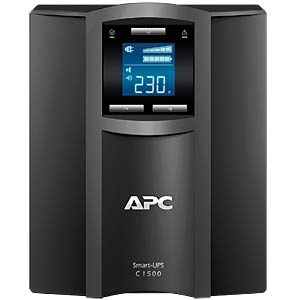

APC Smart-UPS C 1500VA LCD 230V Tower/Rack - SMC15

Output Power Capacity

900 Watts / 1500 VA

Max Configurable Power

900 Watts / 1500 VA

Nominal Output Voltage

230V

Output Voltage Distortion

Less than 5% at full load

Output Frequency (sync to mains)

47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

Topology

Line Interactive

Waveform Type

Sine wave

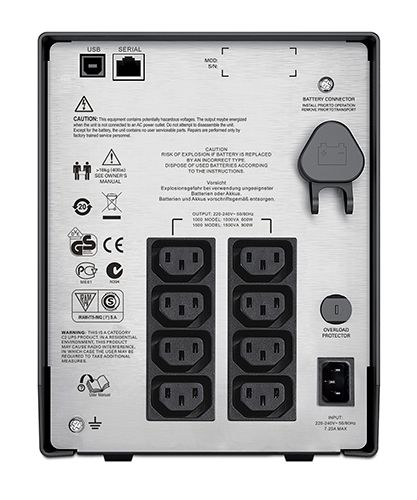

Output Connections

(8) IEC 320 C13
(2) IEC Jumpers

Nominal Input Voltage

230V

Input Frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

IEC-320 C14

Input voltage range for main operations

180 - 287V

Input voltage adjustable range for mains operation

170 - 300V

Battery Type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

3 hour(s)

Replacement Battery

RBC6

RBC™ Quantity

1

Interface Port(s)

USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)

--

Surge energy rating

459 Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Maximum Height

219.00 mm

Maximum Width

171.00 mm

Maximum Depth

439.00 mm

Net Weight

24.09 KG

Shipping Weight

27.23 KG

Shipping Height

376.00 mm

Shipping Width

328.00 mm

Shipping Depth

595.00 mm

Color

Black

Units per Pallet

24.00

Operating Environment

0 - 40 °C

Operating Relative Humidity

0 - 95%

Operating Elevation

0-3000 meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95%

Storage Elevation

0-15000 meters

Audible noise at 1 meter from surface of unit

45.00 dBA

Online Thermal Dissipation

135.00 BTU/hr

Regulatory Approvals

C-tick, CE, GOST, VDE

Standard Warranty

2 years repair or replace

RoHS

Compliant

REACH

REACH: Contains No SVHCs
